Açıklama

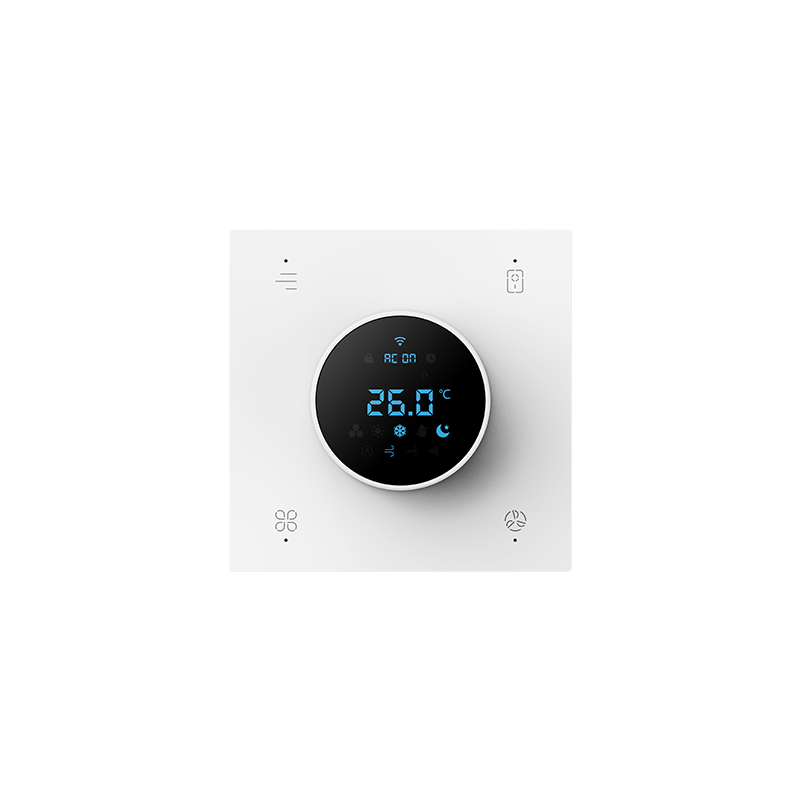

Product model | P10 Series Temperature Control Panel |
| Dimensions | 86×86×52mm（L*H*W） |
| Standby Power Consumption | ≤0.5W |
| Color | White |
| Applicable Environment | Temperature -10℃~+55℃; Humidity: ≤93%RH (no condensation) |
| Communication distance | Open space 100m, wall penetration ability ≥ 2 walls |
| Power Supply | AC110-240V 50-60Hz |
| Infrared emission angle | Wide-angle illumination 120°, maximum front transmission distance ≤ 10 meters |
| Panel material | Flame retardant PC, V0 flame retardant grade |
| Protection level | IP30 |
| Communication Standards | Zigbee 3.0 |
| Installation | 86 box installation (white lime wall, light steel keel gypsum board wall), wood installation |
| Application | Dry contact protocol: This machine uses: 485 protocol control |
Minimalist Design: A Family Aesthetic Honoured with the iF Design Award.
Premium Craftsmanship: The button surface is treated with a PC spray paint process and nano-coating, offering a metallic texture with a smooth and refined finish for a more sophisticated look.
Multiple Control Options: Supports switch buttons, remote control via app, and voice commands. Additionally, it offers scene settings, automation, and scheduled control for a seamless experience.
Comprehensive Maintenance System: Supports OTA remote upgrades, works both offline and with remote configurations. The platform delivers engineering configurations directly to the device.
